HMK-200 Air jet sieve is a laboratory air jet sieve  that works using advanced air jet sieve principle for sieve analysis. HMK-200 is a micron air jet sieve equipped with a patented rotating slotted nozzle. It uses a vacuum to generate negative pressure in order to effectively measure particle size. The diameter of the sieving tank is 200/203 mm designed for 200/203 mm standard test sieves. It suits powdered materials that require particular dispersion and dis-agglomeration.

Specifications:

• Nozzle Rotation: 0-35 rpm
• Sieving Time: Timed set up to 99m 59s
• Dimensions: W35 x D35 x H35 cm
• Power: 220V/110V 50/60Hz 25W
• Weight: 11.8Kg
• Sieving Range: 5 to 5,000 micron
• Sample Size: 0.1 to 2,000 grams

Advantages:

• More efficient than mechanical test sieve shaker
• Disagglomerate particles by air effectively
• Operating with international standard 200/203/75 mm standard test sieves
• Save sieving time
• Suits particles from as small as 5 um up to 5,000 um or even lower (as per particles)
• Safe operation
• Small and compact size
• Timed control from 99 m 59 s to zero second
• Patented air nozzle generates turbine inside and clean tank simultaneously

Emergency Shower and Eyewashmergency mrgency Malalaysierfe

Material: Stainless Steel SS304

Two piece ball valve

Dust proof cover integral fixed type

Eye wash basin 300mm

Nominal Pressure: 1.0 Mpa

Eyewash nozzle with dual flow control valve

Inlet size 1 inch English internal Thread

ANSIZ358.1-2014 Standard

MODEL 2351 MASTER-53α           : Handheld Refractometer,Brix 0 to 53%, ATC & IP65

MODEL 2352 MASTER-53T            : Handheld Refractometer,Brix 0 to 53%,ATC

MODEL 2353 MASTER-53M          : Handheld Refractometer,Brix 0 to 53%

MODEL 2381 MASTER-20 α          : Handheld Refractometer,Brix 0 to 20%,ATC & IP65

MODEL 2382 MASTER-20T            : Handheld Refractometer,Brix 0 to 20%,ATC

MODEL 2383 MASTER 20-M         : Handheld Refractometer,Brix 0 to 20%

MODEL 2354 MASTER-50H           : Handheld Refractometer,Brix 0 to 50%,Heat resistant

MODEL 2364 MASTER-80-H          : Handheld Refractometer,Brix 30 to 80%,Heat resistant

MODEL 2374 MASTER-93H           : Handheld Refractometer,Brix 45 to 93%,Heat resistant

MODEL 2491 MASTER-S/Mill- α  : Handheld Refractometer,Seawater Salinity Refractometer,0-100%,

ATC & IP65

MODEL 2491 MASTER-S/Mill-M : Handheld Refractometer,Seawater Salinity Refractometer,0-100%

laboratory weighing balance

MODEL GF-300                  : Precision Balance,resolution 0.001 g,

Capacity 310 g

MODEL GF-3000               : Precision Balance,resolution 0.01 g,

Capacity 3,100 g

MODEL GF-6100               : Precision Balance,resolution 0.01 g,

Capacity 6,100 g

MODEL FX-300i                 : Compact Balance,resolution 0.001 g,

Capacity 320 g

MODEL FX-500i                 : Compact Balance,resolution 0.001 g,

Capacity 520 g

MODEL FX- 2000i              : Compact Balance,resolution 0.01 g,

Capacity 2,200 g

MODEL FX-3000i               : Compact Balance,resolution 0.01 g,

Capacity 3,200 g

MODEL FX-5000i               : Compact Balance,resolution 0.01 g,

Capacity 5,200 g

MODEL FX-200i with       : Compact Balance,resolution 0.001 g,

Internal calibration            Capacity 220 g

MODEL FX-2000i with     : Compact Balance,resolution 0.01 g,

Internal calibration          Capacity 2,200 g

MODEL EK-300i                 : Compact Balance,resolution 0.01 g,

Capacity 300 g

MODEL EK-610i                 : Compact Balance,resolution 0.01 g,

Capacity 600 g

MODEL EK-6000i               : Compact Balance,resolution 1 g,

Capacity 6,000 g

MODEL HT-500                  : Compact Scales,resolution 0.01 g

Capacity 510 g

MODEL HT-5000                : Compact Scales,resolution 1 g,

Capacity 5,100 g

Lambda Powder Doser

Lambda  Doser Programmable Powder Dispenser replaces manual scooping/dispensing using a spatula, reduces error and speeds up the process. Can be paired to be used with a weighing balance for accurate dispensing of powder samples.

Glass Vessel Capacity: 0.2, 1 or 3 litres.

Dosing Speed: 50mg/min to 50g/min

Time Resolution: 0-99.9 min in 0.1 min steps

Power Supply: 50-60Hz AC Plug in Power Supply

Optional foot pedal for switching control available.

6-PLACE BOILING BATH MODEL BB-6TS

6-place,insulated,double wall rectangular stainless steel water baths.

Removable cover has six sets of concentric rings of 105mm x 76mm x

57mm x 41mm diameters.with integral level device and 2 kW heater.

Temperature control      : By thermostat

Operating range               : Ambient to 100°C

Overall dimensions         : 370(W) x 330(D) x 120(H) mm

Bath dimensions              : 305(W) x 205(D) x 90(H)

12-PLACE BOILING BATH MODEL BB-12/BB-12TS

12-place,insulated,double wall rectangular stainless steel water baths.

Removable cover has twelve sets of concentric rings of 105mm x 76mm x

57mm x 41mm diameters.with integral level device and 2 kW heater.

Temperature control      : By thermostat (Model BB-12TS)

Operating range               : Ambient to 100°C

Overall dimensions         : 470(W) x 345(D) x 120(H) mm

470(W) x 425(D) x 120(H) mm-TS

Bath dimensions              : 400(W) x 295(D) x 90(H)

24-PLACE BOILING BATH MODEL BB-24TS

24-Place,insulated, double wall rectangular stainless steel water baths.

Removable cover has twenty four sets of concentric rings of 105mm x 76mm x

57mm x 41mm diameters.with integral level device and 2.5 kW heater.

Temperature control      : By thermostat

Operating range               : Ambient to 100°C

Overall dimensions         : 750(W) x 475(D) x 135(H) mm

Bath dimensions              : 595(W) x 400(D) x 90(H)

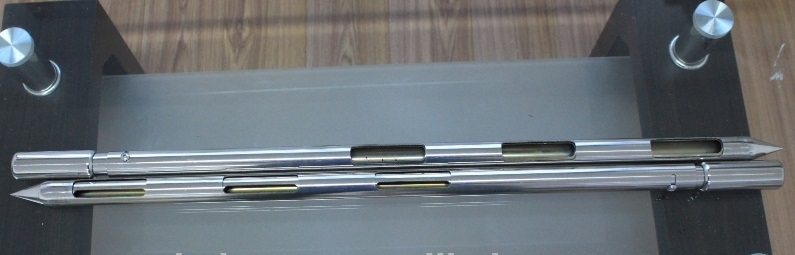

3 zone sampler

Do you require accurate sampling of your incoming raw powder material? This multizone powder sampler will do it for you! The sharp end of the sampler enables you to penetrate powder samples easily ( food, limestone, cement, etc), and the multizone openings ensure accurate sampling at various points in the sample bag, giving a more accurate representation of your sampling. Length, number of zones, and materials can be customized upon request. Contact us for more info!

Standard Length: 1.0 m / 1.5 m

Standard number of holes: 3 holes

Standard Material: 304 Stainless Steel

Standard Diameter: 25mm
